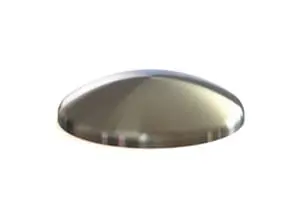

ASME 80/6 Flanged & Dished Head

• Diameters available from 12″ – 108″
• Material Thicknesses available from 12 gauge – 3/8″ Plate (diameter dependent)
• Dish Radius is equal to 80% of Diameter
• Knuckle Radius is equal to 6% (minimum) of Diameter

General Notes

• All heads manufactured from Stainless Steel, Aluminum, Copper, and exotic alloys such as Hastelloy®, AL6XN, Duplex 2205, and Inconel®.
• All available polished Inside/Outside from 80 Grit to 320 Grit (5-10 Ra).
• Heads manufactured as Inside Diameter (ID) or Outside Diameter (OD).
• Available weld preps include tapers, bevels, and lands.
