- Chemical version of our Mid to High Pressure Manway
- Excellent for Chemical Applications: No crevice for product buildup, free draining

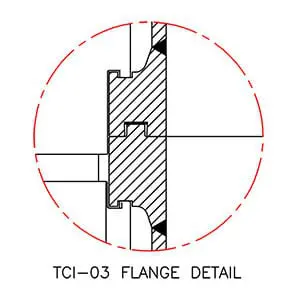

- Cover and upper flange welded with full penetration Plasma Arc weld—can be manufactured in Stainless Steel or Nickel Alloys
- Innovative gasket tab allows for easy removal of flat gasket—no tools needed
- Innovative Spring Assist – reduces lifting force at handle. Stainless Steel internals, smooth operation, compact design, and easy to install
- Safety Lock: Automatically locks cover in 105° open position. Simple to operate, Stainless Steel construction (can be used in conjunction with spring assist assembly)
- Optional horizontal hinge assembly allows for adjustability in cover and won’t allow cover to drop when opened—ensures proper alignment
| Diameter | # of Clamps | Pressure @ 400°F |
|---|---|---|
General Notes:
- All available polished Inside/Outside from 80 Grit to 320 Grit (5-10 Ra)
- Available ID Manway sizes: 16″, 18″, 20″, 22″, 24″, 26″, 28″, and 30″ (special sizes available upon request)
- Flat Gasket Types: Silicone (PC and PC Class VI), EPDM (White, Black, or Class VI), Viton® (White or Black), Teflon® Encapsulated (Silicone or Viton™ Insert)
